• Rear axle, 3.08 ratio
• Suspension Package, Premium Smooth Ride
• Keyless start, push button start

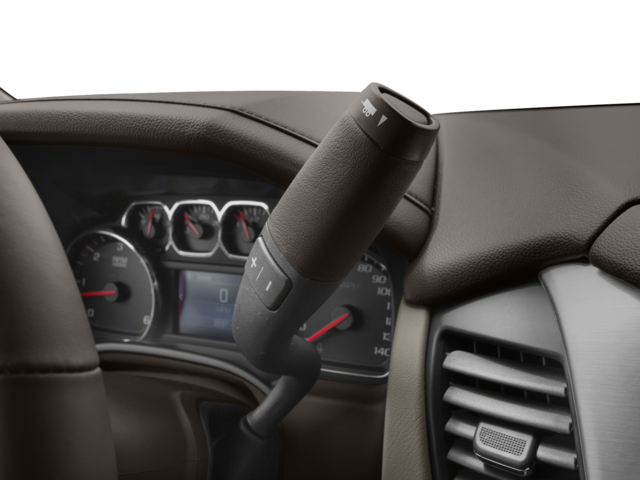

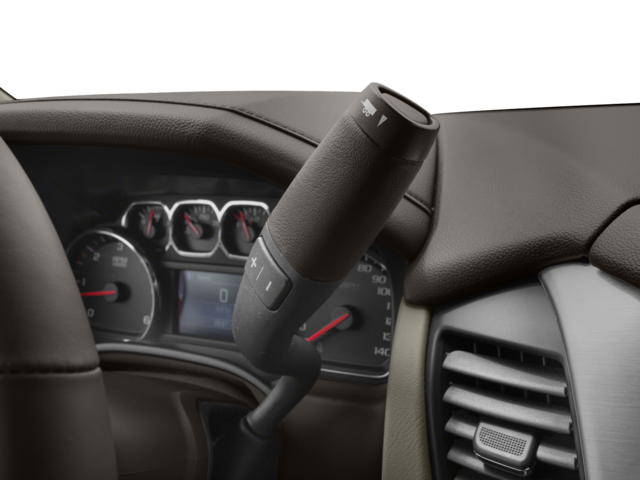

• Tow/haul mode selector, button located at end of shift lever
• Differential, heavy-duty locking rear
• Transfer case, active, single-speed, electronic Autotrac with rotary controls, does not include neutral. Cannot be dinghy towed. (Not available with 2WD models or (NHT) HD Trailering Package.)
• Alternator, 150 amps
• 4-wheel drive
• Trailering equipment, heavy-duty includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and 2" trailering receiver
• GVWR, 7500 lbs. (3402 kg) (Standard on 4WD models.)
• Suspension, front coil-over-shock with stabilizer bar
• Suspension, rear multi-link with coil springs
• Steering, power
• Powertrain grade braking
• Brakes, 4-wheel antilock, 4-wheel disc, VAC power with Brake Assist
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Tools, mechanical jack and wheel wrench stored in rear quarter trim

• Wheels, 18" x 8.5" (45.7 cm x 21.6 cm) bright machined aluminum
• Tires, P265/65R18 all-season, blackwall
• Wheel, full-size spare 17" (43.2 cm) steel
• Tire carrier, lockable outside spare winch-type mounted under frame at rear
• Tire, spare P265/70R17 all-season, blackwall
• Luggage rack side rails, roof-mounted, Black
• Active aero shutters, front
• Assist steps, Black with chrome strip (Deleted when (RVQ) Black assist step kit, LPO or (VXH) Chrome assist step kit, LPO, is ordered.)
• Headlamps, halogen projector
• Headlamps, IntelliBeam, automatic high beam on/off
• Fog lamps
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming, body-color with integrated turn signal indicators and ground illumination.
• Windshield style, acoustic laminated glass
• Windshield, solar-absorbing
• Glass, deep-tinted
• Wipers, front rain-sensing, intermittent
• Wiper, rear
• Liftgate, power, hands free

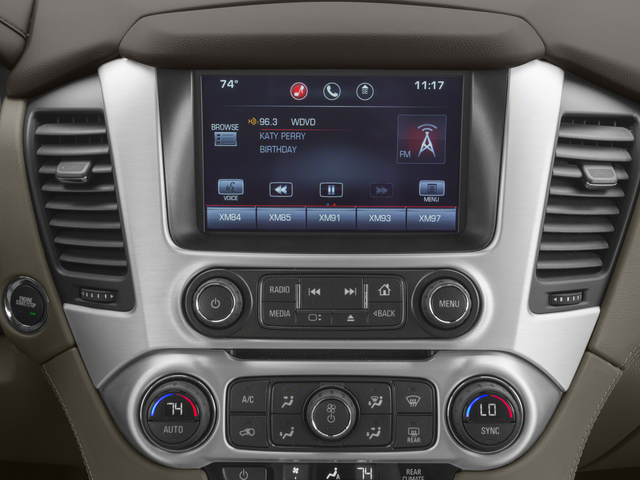

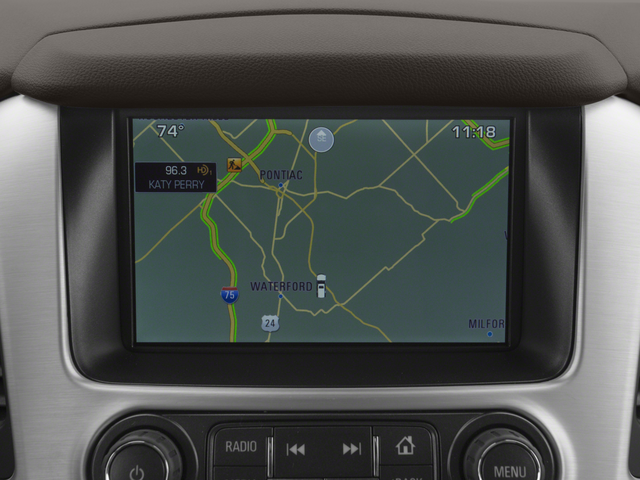

• Audio system, 8" diagonal Color Touch screen with IntelliLink AM/FM/SiriusXM with USB ports and auxiliary jack with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; voice-activated technology for radio and phone; and Shop with the ability to browse, select and install apps to your vehicle. You can customize your content with audio, weather and more. Featuring Apple CarPlay and Android Auto capability for compatible phone; 5 USB ports and 1 auxiliary jack
• Audio system feature, Bose premium 9-speaker system with subwoofer in center console
• Audio system feature, CD player (Replaced by (U42) rear seat entertainment system when (U42) is ordered.)
• SiriusXM Satellite Radio is standard on nearly all 2017 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• Radio, HD
• OnStar with 4G LTE and built-in Wi-Fi hotspot connects to the Internet at 4G LTE speeds; includes OnStar Data Trial for 3 months or 3GB (whichever comes first) (Visit www.onstar.com for coverage map, details and system limitations. Services vary by model. OnStar acts as a link to existing emergency service providers. Not all vehicles may transmit all crash data. Available Wi-Fi requires compatible mobile device, active OnStar service and data plan. Data plans provided by AT&T.)
• Wireless charging (Not compatible with all phones. Compliant batteries include QI and PMA technologies. Reference Mobile devices manual to confirm what type of battery it uses. See "gmtotalconnect.com" for phone compatibility information.)

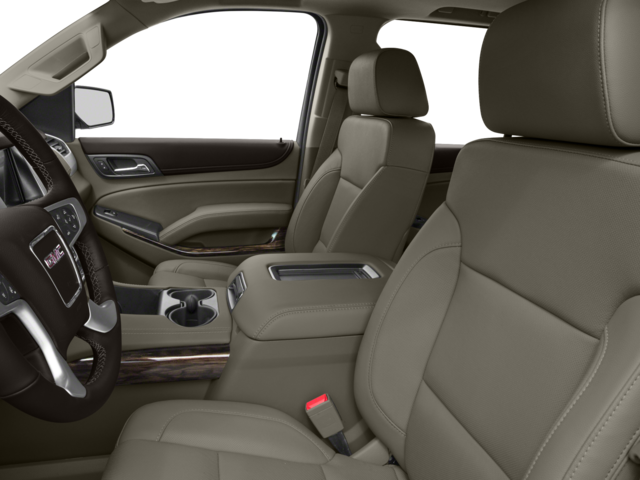

• Seats, front bucket with Perforated leather-appointed heated and ventilated seat cushions, 12-way power driver and passenger seat includes 6-way power cushions, driver seat 2-position memory, 4-way power lumbar control and power recline

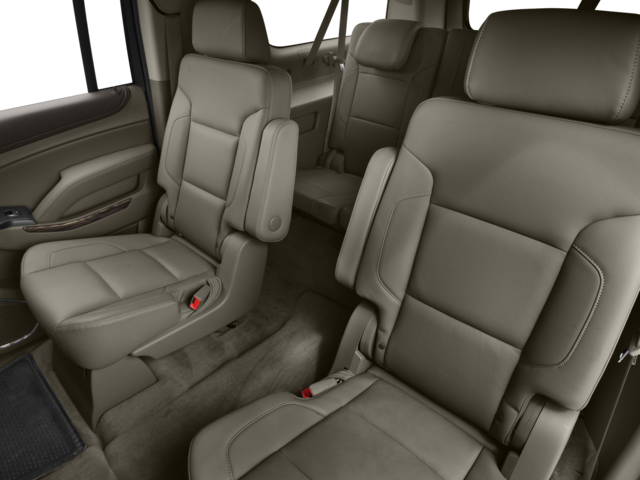

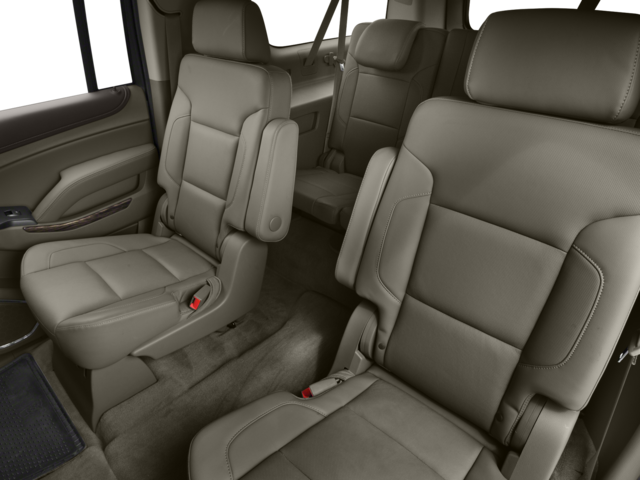

• Seats, second 60/40 split-folding bench power release
• Seats, third row 60/40 split-bench, power fold
• Seats, heated and ventilated driver and front passenger perforated leather-appointed
• Seats, heated second row, outboard positions
• Safety Alert Driver Seat
• Seat adjuster, front passenger 6-way power

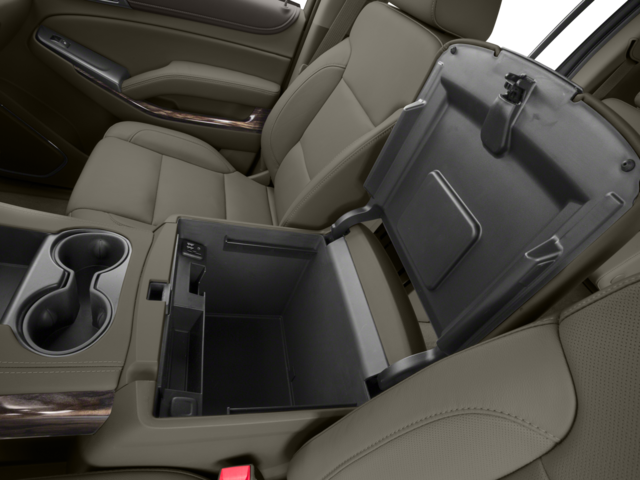

• Console, floor with storage area, cup holders
• Cargo net
• Floor mats, color-keyed carpeted first and second row, removable
• Floor covering, color-keyed carpeting
• Steering column, power tilt and telescopic
• Steering wheel, heated, leather-wrapped

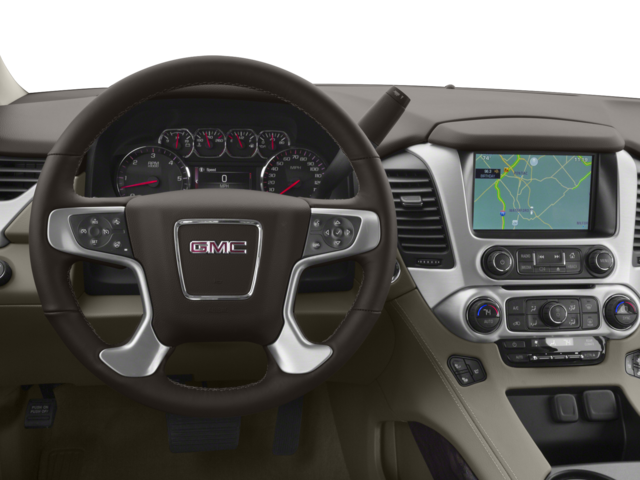

• Steering wheel controls, mounted audio and cruise controls and Driver Information Center controls
• Display, driver, 8" diagonal customizable driver display

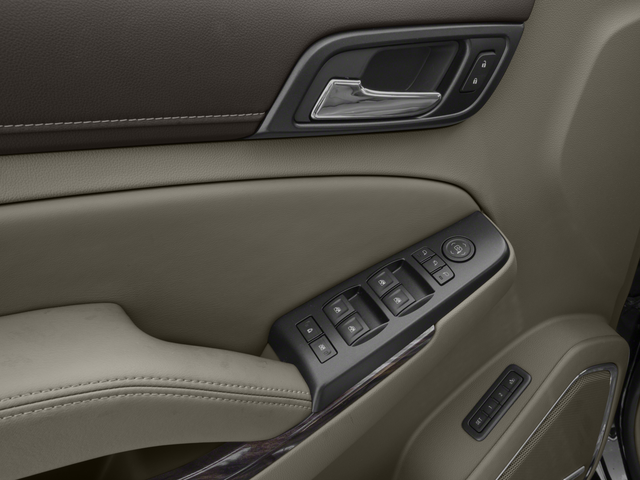

• Windows, power all express down, front express up
• Door locks, power programmable with lockout protection
• Passive Entry System includes (AQQ) Remote Keyless Entry
• Remote vehicle start includes extended range Remote Keyless Entry
• Cruise control, electronic with set and resume speed (Not included when (Y66) Adaptive Cruise Control is ordered.)
• Pedals, power-adjustable for accelerator and brake
• Universal Home Remote includes garage door opener, programmable
• Climate control, tri-zone automatic with individual climate settings for driver, right-front passenger and rear passengers
• Defogger, rear-window electric
• Theft-deterrent system, electrical, unauthorized entry
• Power outlet, 110-volt, 1.1 Amp, 150 Watt
• Power outlets, 5 auxiliary, 12-volt includes outlets in the instrument panel, console, back of the console, 1 in 3rd row and 1 in the cargo area.
• Mirror, inside rearview auto-dimming
• Assist handles, 1st row passenger and 2nd row outboard seats
• Lighting, interior with dome light driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions
• Lighting, interior includes courtesy lighting with theater dimming, lighting for front and rear door handles, front and rear passenger footwells and door storage area
• OnStar Guidance plan for 3 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation, Vehicle Diagnostics and more (trial excludes Hands-Free Calling) (Fleet orders receive a 6-month trial. Visit www.onstar.com for coverage map, details and system limitations. Services vary by model. OnStar acts as a link to existing emergency service providers. Not all vehicles may transmit all crash data.)
• OnStar Basic plan for 5 years includes limited vehicle mobile app features, Monthly Diagnostics Report and Dealer Maintenance Notification (Basic Plan available for 5 years from the date of vehicle delivery and is transferable. Does not include Emergency, Security or Navigation services.)

• Brakes, 4-wheel antilock, 4-wheel disc
• Low Speed Forward Automatic Braking
• Hill Start Assist, brakes
• StabiliTrak, stability control system with brake assist, includes traction control
• Daytime Running Lamps, with automatic exterior lamp control
• Airbags, Frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Driver inboard seat-mounted side-impact airbag; Head-curtain airbags for all rows in outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats; lower anchors and top tethers located in all second row seating positions, top tethers located in third row seating positions
• Parking assist front and rear
• Rear Cross-Traffic Alert
• Forward Collision Alert
• Lane Keep Assist
• Rear Vision Camera
• Side Blind Zone Alert with Lane Change Alert
• Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System

Enhanced Security Package

• Body Security Content
• Includes (Utr) Self-Powered Horn
• (Utv) Interior Movement
• (Utu) Vehicle Inclination Sensors
• Door And Liftgate Lock Shields And Glass Break Sensors In Rear Quarter Glass And Liftgate Window
• Removes Sunglass Holder And Conversation Mirror From Overhead Console

Open Road Package

• Includes Additional 9 Months Of Siriusxm Radio And Navtraffic Service
• (Cf5) Power Sunroof
• (U42) Rear Seat Entertainment System And On Slt (Io6) Audio System With Navigation

Premium Edition

• Includes (Seu) 22 6-Spoke Split Chrome Wheels
• Lpo
• (Qst) P285/45R22 All-Season
• Blackwall Tires
• (B85) Bright Bodyside Moldings
• (Rz9) Grille Insert
• Lpo
• (Vqz) Polished Exhaust Tips
• Lpo.

Suspension Package, Standard

• Increased Capacity
• Premium Smooth Ride With Air Leveler

• Leather Seats
• Third Row Seat
• Navigation
• DVD
• 4x4
• Quad Bucket Seats
• Power Liftgate
• Rear Air
• Heated Driver Seat
• Heated Rear Seat
• Cooled Driver Seat
• Back-Up Camera
• Running Boards
• Premium Sound System
• Satellite Radio

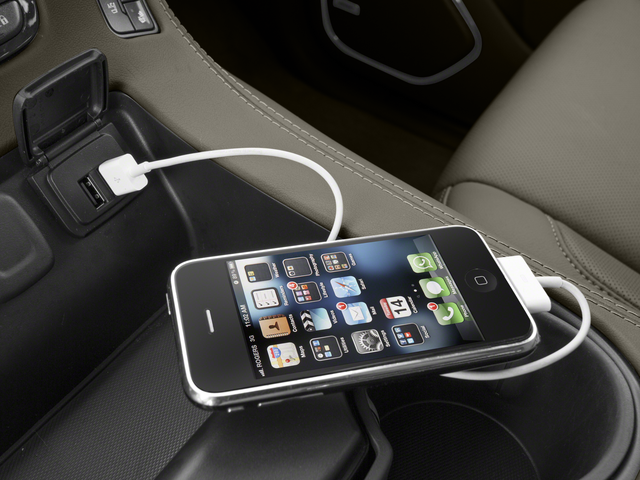

• iPod/MP3 Input
• Onboard Communications System
• Trailer Hitch
• Remote Engine Start
• Dual Zone A/C
• Cross-Traffic Alert
• Smart Device Integration
• WiFi Hotspot
• Blind Spot Monitor
• Hands-Free Liftgate
• Lane Keeping Assist
• Apple CarPlay®
• MP3 Player
• Privacy Glass
• Remote Trunk Release
• Keyless Entry
• Steering Wheel Controls
• Alarm
• Electronic Stability Control
• Heated Mirrors
• Bucket Seats
• Adjustable Pedals
• Electrochromic rearview mirror
• Mirror Memory
• Brake Assist
• 4-Wheel ABS
• Luggage Rack
• Seat Memory
• 4-Wheel Disc Brakes
• Rain Sensing Wipers
• Tire Pressure Monitoring System
• Air Suspension
• Locking Rear Differential
• Heated Steering Wheel
• 6-Speed A/T
• Driver Air Bag
• Passenger Air Bag
• Universal Garage Door Opener
• Leather Wrapped Steering Wheel
• Front Tow Hooks
• Fog Lamps
• Auto-Off Headlights
• Cruise Control
• Power Driver Seat
• Power Windows
• Power Passenger Seat
• Power Door Locks
• Rear Defrost
• Power Driver Mirror
• Daytime Running Lights
• Integrated Turn Signal Mirrors
• Driver Lumbar
• Passenger Lumbar
• Intermittent Wipers
• Pass-Through Rear Seat
• Variable Speed Intermittent Wipers
• AM/FM Stereo
• Adjustable Steering Wheel
• Tires - Front All-Season
• Tires - Rear All-Season
• Tires - Front Performance
• Tires - Rear Performance
• Gasoline Fuel
• Front Floor Mats
• Full Size Spare Tire
• Power Steering

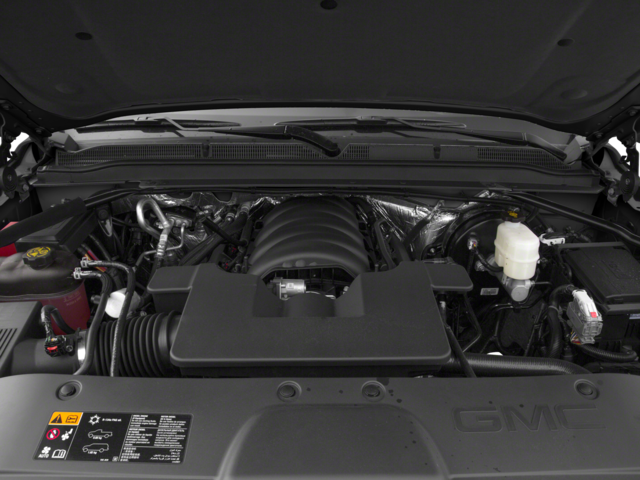

• 8 Cylinder Engine
• Transmission Overdrive Switch
• Rear Head Air Bag
• Side Head Air Bag

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 16.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4200
• Curb Weight - Front (lbs): 2798
• Curb Weight - Rear (lbs): 2688
• Gross Vehicle Weight Rating Cap (lbs): 7500
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 600
• Suspension
• Suspension Type - Front: Coil-Over Shock
• Suspension Type - Rear: Multi-Link
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.42
• Stabilizer Bar Diameter - Rear (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13 x 1.2
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.8
• Tires
• Front Tire Order Code: RKX
• Rear Tire Order Code: RKX
• Spare Tire Order Code: RC4
• Front Tire Size: P265/65R18
• Rear Tire Size: P265/65R18
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.5
• Rear Wheel Size (in): 18 x 8.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.3
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31.0
• Exterior Dimensions
• Wheelbase (in): 130.0
• Length, Overall w/rear bumper (in): 224.4
• Width, Max w/o mirrors (in): 80.5
• Height, Overall (in): 74.4
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 34.13
• Ground Clearance, Front (in): 7.91
• Ground Clearance, Rear (in): 7.91
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 100.3
• Cargo Area Length @ Floor to Seat 2 (in): 63.6
• Cargo Area Length @ Floor to Seat 3 (in): 31.6
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): 34.92
• Cargo Volume to Seat 1 (ft³): 121.7
• Cargo Volume to Seat 2 (ft³): 76.7
• Cargo Volume to Seat 3 (ft³): 39.3
• Interior Dimensions
• Passenger Capacity: 7
• Passenger Capacity: 8
• Front Head Room (in): 42.8
• Front Leg Room (in): 45.3
• Front Shoulder Room (in): 64.8
• Front Hip Room (in): 60.8
• Second Head Room (in): 39.1
• Second Leg Room (in): 39.7
• Second Shoulder Room (in): 65.1
• Second Hip Room (in): 60.3
• Third Head Room (in): 38.5
• Third Leg Room (in): 34.5
• Third Shoulder Room (in): 62.6
• Third Hip Room (in): 49.3
• Summary

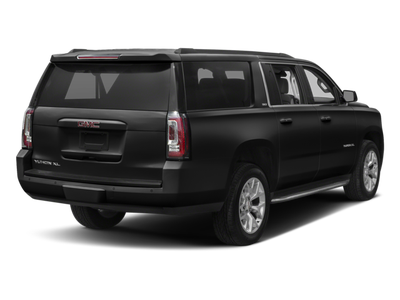

• Vehicle Name: GMC Yukon XL
• Body Style: Sport Utility Vehicle
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
